Magnetic Separators for Coolant Filtration
CoolantFilters.com provides high-performance magnetic separators engineered to remove ferrous contaminants from metalworking fluids automatically without consumables. These systems improve coolant quality, protect equipment, and reduce maintenance downtime keeping your machining operations efficient and productive.
- Overview

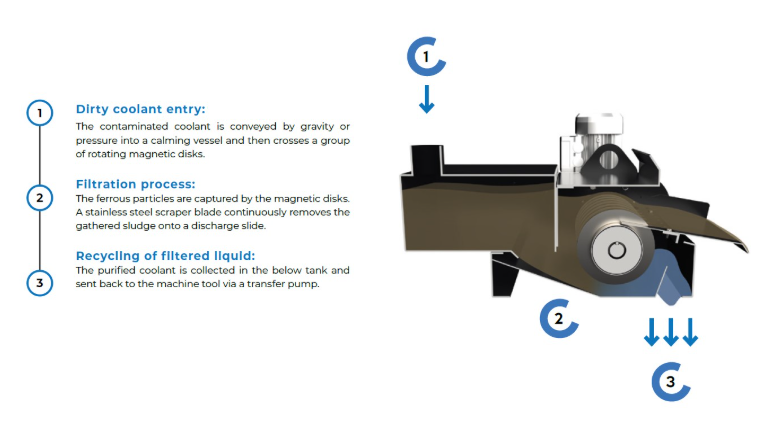

How Magnetic Separators Work
Coolant or oil from the machining process flows — either by gravity or pump — into the Automag Magnetic Separator, where it first enters a calming diffuser chamber. This chamber slows and stabilizes the fluid flow, allowing uniform contact with the separator’s rotating magnetic blades.
As the fluid passes through, high-intensity magnetic fields capture ferrous particles and fine sludge directly from the coolant stream. The rotating magnetic blades continually attract and collect these contaminants, ensuring maximum particle removal efficiency.
When the blades rotate past the scraper plate assembly, the collected ferrous sludge is automatically removed from the magnetic surface. The scraped material accumulates on an angled slide, where gravity causes it to discharge into a designated waste collection area.
Meanwhile, the clean coolant flows through the bottom outlet of the separator into a holding tank, ready to be returned to the process or directed to a secondary filtration stage, such as a Gravity Bed Coolant Filter for complete system purification.
Model

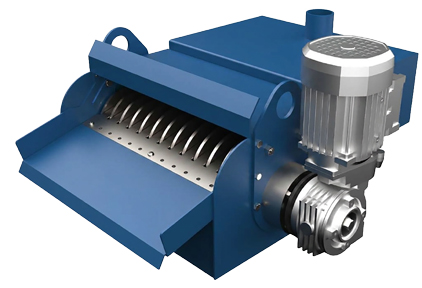

Automag
Automag Magnetic Stainless-Steel Separators deliver powerful magnetic sludge removal for ferrous machining applications, operating efficiently with both emulsions and neat oils — all without the need for disposable filter media.
Built for performance and flexibility, these modular systems can be used as standalone magnetic filters or seamlessly integrated with paper filtration or self-cleaning systems to enhance overall coolant cleanliness. By capturing ferrous particles before they reach downstream filtration stages, Automag separators maximize system efficiency, extend coolant and tool life, and reduce maintenance costs.
Durable stainless-steel construction and high-intensity magnetic cores ensure long-term reliability in demanding metalworking environments. Whether installed inline or as a secondary filtration stage, Automag provides continuous, maintenance-free separation of fine ferrous contaminants.
Key Features:
- High-performance magnetic separation for ferrous fines and sludge in coolant or oil
- No disposable media required eliminating consumable costs and waste
- Modular, flexible design integrates easily with gravity beds, Hydroflux, or Autoflux systems
- Durable stainless-steel construction for long service life in harsh industrial conditions
- Simple maintenance quick access for cleaning and inspection
- Continuous operation for uninterrupted coolant flow and improved filtration efficiency
- High Quality Bonfiglioli Gear Motor
Applications:
- CNC turning, milling, and grinding operations
- Centralized coolant filtration systems
- Heat-treated and hardened steel machining
- Hydraulic, bearing, and gear component production
- Pre-filtration for gravity bed or drum-style filtration systems
- Industry Type
Solutions by Industry Type
CoolantFilters.com supports manufacturers across a wide range of industries helping maintain cleaner coolant, longer tool life, and more consistent part quality. Our systems are trusted wherever reliability, precision, and uptime are critical to production.
Automotive
Maintain coolant clarity and chip control in high-speed machining, casting, and component production environments.
Aerospace
Ensure coolant purity and precision for tight-tolerance components and exotic alloys used in flight-critical applications.
Medical Manufacturing
Meet strict cleanliness standards for machining surgical-grade materials and implants, ensuring surface finish integrity.
General Manufacturing
Enhance uptime and extend tool life across mills, lathes, and multi-axis machines in diverse production settings.
Heavy Equipment & Agricultural Machinery
Manage high coolant volumes and abrasive contamination in large-scale machining and fabrication operations.
Energy & Power Generation
Support turbine, compressor, and precision component machining with stable, contaminant-free coolant systems.
Tool & Die / Mold Making
Protect finishes and surface detail in high-precision tool and mold machining by maintaining ultra-clean coolant.
Hydraulics & Fluid Power Components
Prevent cross-contamination in valve, manifold, and pump manufacturing with reliable chip and coolant filtration.
- Industry Type
Solutions by Industry Type
Automotive
Aerospace
Medical Manufacturing
General Manufacturing
Heavy Equipment & Agricultural Machinery
Energy & Power Generation
Tool & Die / Mold Making
Hydraulics & Fluid Power Components
Benefits
Benefits of Magnetic Separators
Equipment Protection
Prevent premature pump wear, nozzle clogging, and damage to critical system components by removing ferrous contaminants before they circulate through the system.
Coolant Quality
Improve coolant clarity, reduce bacterial growth, and extend coolant life for cleaner, more stable machining operations and consistent part finishes.
Reduced Maintenance
Minimize downtime and lower cleaning frequency with self-cleaning magnetic designs that keep systems running continuously and efficiently.
- Maintenance
Maintenance & Support
- Automag: Semi-automatic cleaning every few days
- Magdisk: Fully automatic cleaning zero manual downtime
- Monthly: Replace filter media and clean collection chambers
CoolantFilters.com provides installation support, custom sizing, and 24/7 technical assistance.
