ONE103OIL - Advanced Oil Recovery System
- Overview

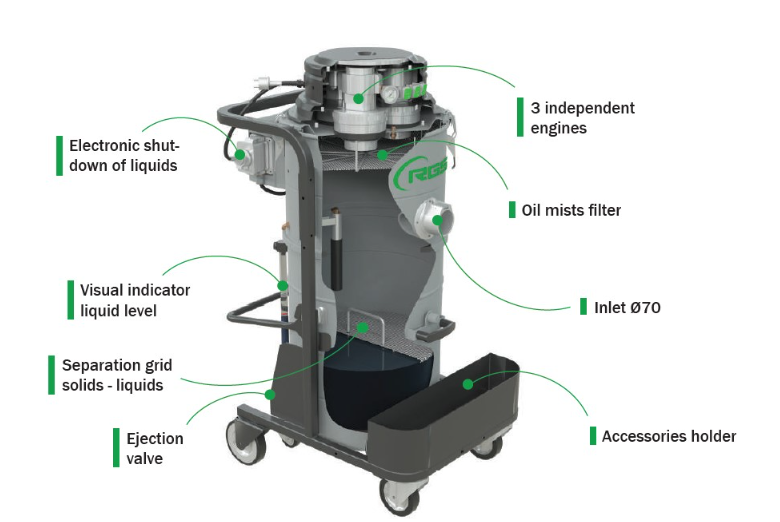

How the ONE103OIL System Works

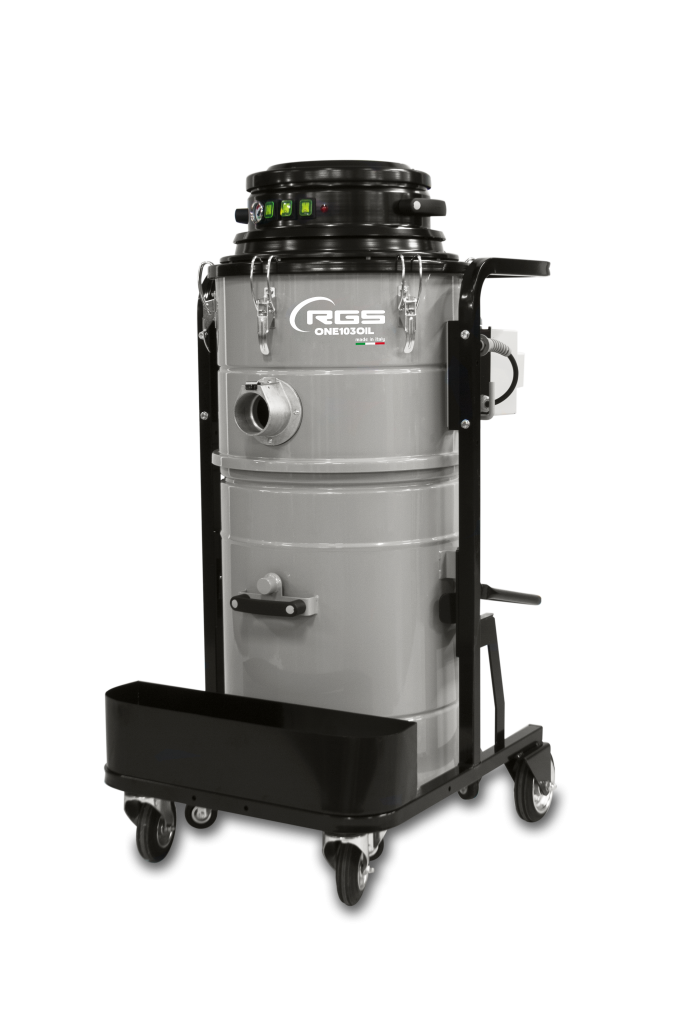

The ONE103OIL Coolant Extraction System operates as a powerful, single-phase industrial vacuum engineered for quick and efficient removal of coolant, tramp oil, and sludge from CNC machine tanks and work areas. Unlike standard shop vacuums or skimmers, the ONE103OIL combines strong suction power, fluid separation, and easy discharge in one compact, mobile unit.
Stage 1: High-Power Extraction
Three independent bypass motors generate exceptional suction, capable of picking up coolant, sludge, and even small metal parts or screws. The 120V single-phase design allows the system to plug into any standard outlet, providing industrial power in a portable format.
Stage 2: Separation and Filtration
Extracted fluids and debris first pass through a perforated stainless-steel basket that captures chips, solids, and larger particles. For finer filtration, an optional nylon filter bag can be added inside the basket to remove smaller contaminants, ensuring cleaner recovered coolant.
Stage 3: Safe Containment and Discharge
The cleaned coolant collects in a removable lower tank mounted on wheels for easy handling. Once full, the tank can be manually drained using the bottom discharge valve, or wheeled directly to a disposal area for emptying. This design eliminates heavy lifting, reduces mess, and speeds up coolant tank maintenance.
This fully integrated process results in longer coolant life, reduced disposal costs, and better machining performance.
Model
ONE103OIL
Key Features:
- Powerful suction performance with three independent 120V single-phase bypass motors
- High fluid recovery rate, capable of extracting up to 90 liters (≈24 gal) of liquid per minute*
- Integrated stainless-steel chip basket for solids separation and optional fine filter bag for additional filtration
- Automatic liquid shut-off system prevents overfill and ensures operator safety
- Removable lower collection tank on wheels for easy emptying and cleaning
- Durable, compact design ideal for use alongside CNC machines and workstations
- Simple manual drain valve allows quick discharge or transfer of reclaimed coolant
Applications:
- Coolant and sludge extraction from CNC machine tanks and sumps
- Chip and debris removal from machining centers and worktables
- Oil and coolant recovery for recycling or safe disposal
- Maintenance and cleaning of central coolant systems and small tanks
- General fluid cleanup in machining and metalworking facilities
Model
RGS OIL 223

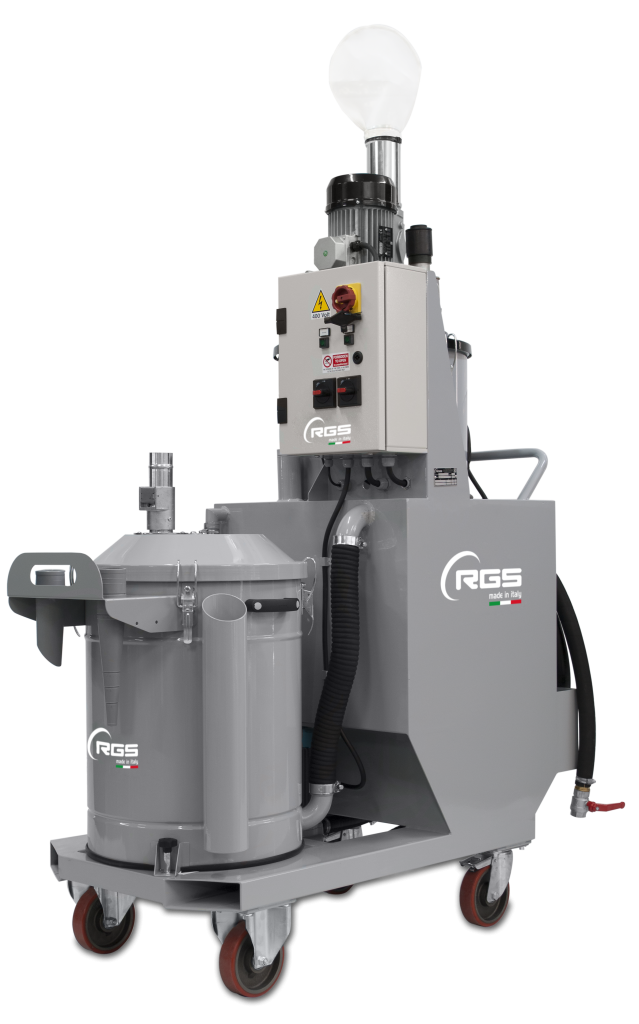

The OIL223M is a high-capacity coolant extraction and recovery system designed for demanding metalworking operations. Built on the same proven platform as the ONE103OIL, this model adds a larger collection capacity and an integrated centrifugal discharge pump, allowing operators to suction and discharge simultaneously for maximum efficiency.
Powered by three independent single-phase bypass motors, the OIL223M delivers exceptional suction performance capable of handling liquids, sludge, and chips from CNC tanks, machine sumps, and work areas. The automatic liquid shutoff ensures safe operation, while a removable 220-liter collection tank and 60-liter chip basket simplify disposal and cleaning.
The built-in 0.9 kW discharge pump moves recovered fluid at up to 200 liters per minute, making it easy to return coolant to the machine or transfer to a waste container — all without interrupting suction. Compact and maneuverable, this system is ideal for facilities that demand faster tank cleaning and fluid management across multiple machines.
Key Features:
- Three independent single-phase motors delivering up to 4650 W of total power
- Built-in discharge pump (200 L/min) enables suction and discharge at the same time
- 220-liter liquid tank with 60-liter chip basket for large-scale cleanup tasks
- Automatic liquid shutoff prevents overfill and enhances operator safety
- Integrated stainless-steel filter basket with optional nylon filter bag for fine solids
- Compact, mobile design with durable wheels and easy-access discharge valve
- Simple plug-and-play setup using standard 120V power supply
Applications:
- Coolant and oil recovery from CNC tanks, grinders, and machining centers
- High-volume sump and tank cleaning in multi-machine production lines
- Maintenance of central coolant systems handling heavy contamination
- Simultaneous extraction and discharge during continuous machine servicing
- Industry Type
Solutions by Industry Type
CoolantFilters.com supports manufacturers across a wide range of industries helping maintain cleaner coolant, longer tool life, and more consistent part quality. Our systems are trusted wherever reliability, precision, and uptime are critical to production.
Automotive
Maintain coolant clarity and chip control in high-speed machining, casting, and component production environments.
Aerospace
Ensure coolant purity and precision for tight-tolerance components and exotic alloys used in flight-critical applications.
Medical Manufacturing
Meet strict cleanliness standards for machining surgical-grade materials and implants, ensuring surface finish integrity.
General Manufacturing
Enhance uptime and extend tool life across mills, lathes, and multi-axis machines in diverse production settings.
Heavy Equipment & Agricultural Machinery
Manage high coolant volumes and abrasive contamination in large-scale machining and fabrication operations.
Energy & Power Generation
Support turbine, compressor, and precision component machining with stable, contaminant-free coolant systems.
Tool & Die / Mold Making
Protect finishes and surface detail in high-precision tool and mold machining by maintaining ultra-clean coolant.
Hydraulics & Fluid Power Components
Prevent cross-contamination in valve, manifold, and pump manufacturing with reliable chip and coolant filtration.
Benefits
Benefits of ONE103OIL
Faster Maintenance Cycles
Streamline tank cleaning and coolant recovery operations the OIL Series vacuums reduce cleaning time by up to 80% compared to manual or traditional methods, improving overall machine uptime.
Cost & Coolant Savings
Efficient separation and recovery of clean fluid minimizes coolant waste and reduces expenses associated with fluid replacement and disposal.
Simultaneous Suction & Discharge
Clean and refill machine tanks without interruption. The integrated discharge pump allows operators to extract and return coolant at the same time, eliminating process delays.
High Capacity, Low Effort
With various liquid tank capacities and an integrated chip basket, the system handles heavy contamination effortlessly — while automatic shutoff controls and wheeled collection tanks make operation safe, ergonomic, and efficient.
Consistent System Cleanliness
Removes chips, sludge, and emulsified oils in one pass, keeping machine interiors cleaner and reducing buildup that leads to bacterial growth or coolant degradation.
- Maintenance
Maintenance & Support
- Simple periodic inspection and oil chamber cleaning
- Compatible with standard coolant systems
- Full installation guidance and technical support included
CoolantFilters.com provides installation support, custom sizing, and 24/7 technical assistance.
